ZW15BY20H





Applications: Automobile, Medical equipment, Valve control, Stage lighting Equipment
Ambient Temperature -20°C~+55°C
Insulation Resistance  500V DC 50MΩMIN
Insulation Class   E


Specifications

型号
Model

步距角
Step Angle
(Deg)

相数 No.of Phase

电压
Voltage
(V)

电流 Current
(A)

电阻
Resistance
(Ω)

导程
Lead(mm)


步长
Step Length
(μm)

推力
Push Torque
(N)

行程
Stroke(mm)

外形图
Wdg

重量
Weight
(g)
PDF下载

ZW15BY20H11-M3-38

18

2

6

0.23

15

0.5

25

500(500pps)

28

1

23

ZW15BY20H11-M3-17

18

2

6

0.23

15

0.5

25

500(500pps)

9

2

26

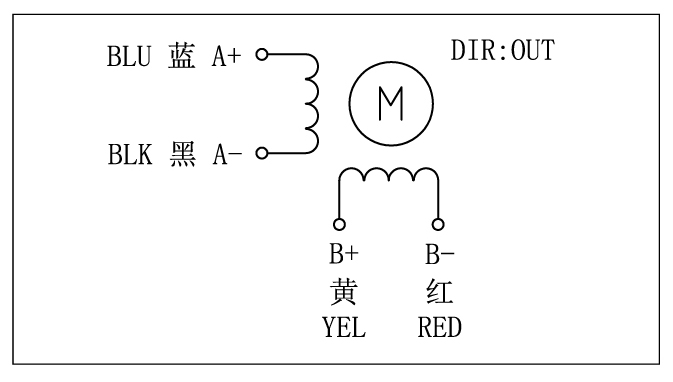

Wiring Diagram

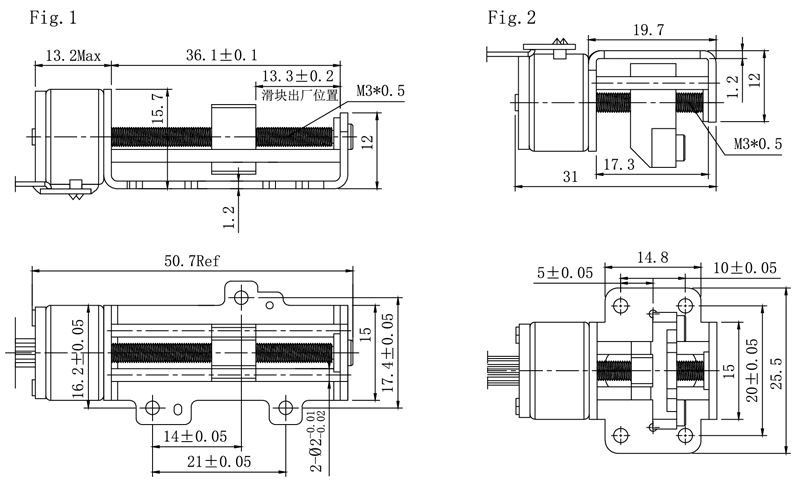

Figure Dimensions (unit =mm)
